1/4-ton Vertical Lift for the Home
WorldsLowestPrices
1-800-477-0248

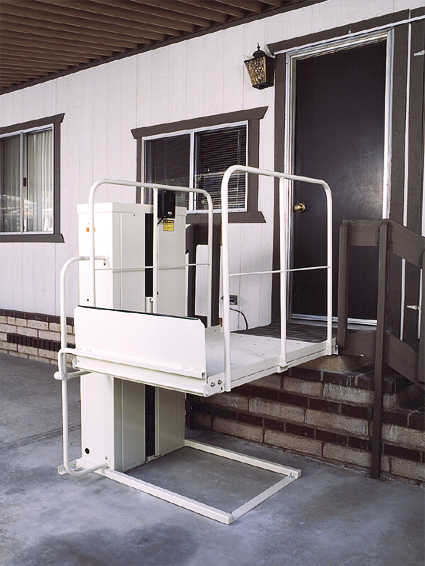

The product described herein, manufactured by Mac's Lift Gate Inc., Long Beach, CA, is a precision vertical platform lifting device consisting of a machine tower with lifting platform, selected and dimensioned to provide adequate lifting height to suit the residential building requirement. The lift is capable of being used indoors and outdoors to vertically transport a wheelchair user or otherwise mobility-impaired person, up and over a low-rise barrier created by stairs, thus creating access to or within the building.
A company with not less than forty (40) years of experience in the design, fabrication and installation of specialized lifting equipment for handicapped and geriatric consumers should supply the lift.
The unit shall be assembled and pre-wired (less optional equipment and necessary
gates) and manufactured with adequate lifting and load capacity for application
described elsewhere in this specification.
The unit shall be easy to operate by the user or attendant, and shall be
capable of functioning in all weather conditions.
The unit shall have the capacity to lift up to 500lbs. to the desired
lifting height up to a maximum lift height of 50 inches (4 feet 2 inches)
and 72 inches (6 feet).
MAC'S Vertical Home Lift PL-50 PL50 PL72 porch school mobile church residential commercial building, mattress, mobility
Machine tower: 14 gage cold rolled steel.
Base frame: 1 1/2" square x 3/16" wall structure steel tubing.
Lift weldment: 1 1/2" x 3" x .188" wall structure steel tubing.
Tower cap: 10 gage cold rolled steel plate
Side Guard Panels: 20 gage cold rolled steel sheet panel, 1" square
x .120" & .083" gauge steel tubing (frame).
Platform: 14 gage cold rolled steel plate with slip resistance surface.
Access ramp: 11 gage steel steel plate with slip resistance surface.
Electrical box: 16 gage galvanized steel
Switch box: Hi-impact A.B.S. Thermoplastic instrument case.
Limitations: Vertical platform lift shall operate both indoors and
out, and must be anchored on a level, 4" thick, 3500 psi reinforced concrete
surface or pad.
The unit shall be pre-wired by manufacturer with exterior grade thermoplastic coated wiring. Extension Cord, 14 gage Ul-cSA approved is recommended if power source is not within three (3) feet of Machine tower. Machine may also be wired using water proof conduit.
1. 3 Stage wash, soapy water, clear water, and Iron Phosphate which
is applied to parts.
2. Parts are inspected and scuffed
3. Epoxy Primer is applied
4. Parts are baked at 250 degrees for 15 minutes
5. Parts are inspected and scuffed if needed
6. Huebert O'Brian Powder-TGIC Polyester
7. Mixed with Paint, Color Almond PFT-500-S8
8. Powder Coat is applied and baked at 400 degrees for 30 minutes
9. Parts are inspected and scuffed if needed
The unit shall have the following safety features for protection of users and the general public:
The contractor shall do all work and supply all materials necessary for the complete installation. It is the intent of this specification to outline boradly the equipment required but not to cover the details of design and construction.
Maintenance of the vertical platform lift unit shall consist of regular cleaning of the unit, protection of the painted surface of the unit.
Unit shall have one (1) year limited warranty on the basic unit and electrical system with a two (2) year warranty of drive train components.
This specification has been written to assist you and your consumer in preparing an accurate and detailed descsription for specifying a vertical platform lift. All or part of this specification may be reproduced. Additional technicalis available from our Product Engineering Department.
MAC’S Vertical Home Lift System Type |
||
PL-50 ( Maximum platform lifting height 50”) |
|
|
PL-72 ( Maximum platform lifting height 72”) |
|
|
MAC’S Vertical Home Lift System Options-Add to System Price |
||
Right turn 90 Degree
Exit Platform |
|
|
Safety Pan
Platform |
|
|
Solid
Sides
Platform
(36”high; does NOT include Platform Gate
option) |
|
|
Larger
Platform
(35”wide x 54” long) |
|
|
Bolt on
Platform
(To
help get lift indoors, around corners or upstairs; specify when
ordering) |
|
|
Upper Landing
Gate
(36” high & includes
Interlock)
|
|
|
Larger Upper Landing
Gate (36” high 35”
W & includes Interlock |
|
|
90 Deg Upper Landing
Gate (36” high & includes
Interlock) |
|
|
Platform Gate &
Solid Sides (36” high &
includes Interlock; avail w/Solid Sides ONLY) |
|
|
Strike for Door
or Gate |
|
|
Emergency
Stop |
|
|
Call/Send Switches
(2) |
|
|
Hand Held
Remote |
|
|
Extra
Transmitter |
|
|
Bolt on Hand
Rail |
|
|
Portable System |
|
|
DC System
–
Battery Powered Lift |
|
|
ANSI System – See Pricing & Options
Below |
|
|
MAC’S Vertical
Home Lift ANSI
System
-$1,500.00 deposit w/order
required |
|
|
PL-50 ANSI
Lift (Includes safety features below *
; max platform lifting height 50”) |
|
|
PL-72 ANSI
Lift (Include safety features below *
; max platform lifting height 72”) |
|
|
*Call/Send Switches
(2)
*Emergency
Stop
*Solid Sides
(36”
high)
*Safety Pan
*Upper Landing
Gate (36” high
& includes Interlock)
*Platform
Gate
(36” high & includes Interlock) |
||
MAC’S Vertical Home Lift ANSI System Options-Add to ANSI System Price |
Price |
|
90 Degree Exit
Platform (Includes 90
Deg Upper Landing Gate, Platform Gate & Interlocks) |
|
|
DC System –
Battery Powered Lift
(Does NOT include battery, requires one U1
battery) |
|
|
MAC’S PSL-50
Portable Stage Lift deposit w/order required
|
Price |
|
PSL-50 Portable Stage
Lift (Includes safety features
below * ; max platform lifting height 50” |
|
|
*Call/Send Switches
(2)
*Emergency
Stop
*Solid
Sides
(36”
high)
*Safety Pan
*Entrance & Exit
Side Platform
Gates
(36’high & includes
Interlock)
*Portable |
||
Please call or E-Mail for Illustrated Brochure and Price List 1 800 477-0248
Please let us know:
Your Name,
Address,
Area Code and Phone Number,
What you would like on,
Where you are planning to put on your Wheelchair Elevator
Where you are planning to put your Wheelchair Elevator
The Approximate Height of your Wheelchair Elevator
Additional Comments
We Promise Not to Add Your Name to any Mail or Phone List.
